JC10

Written by Web Admin on . Posted in ycm alliance.

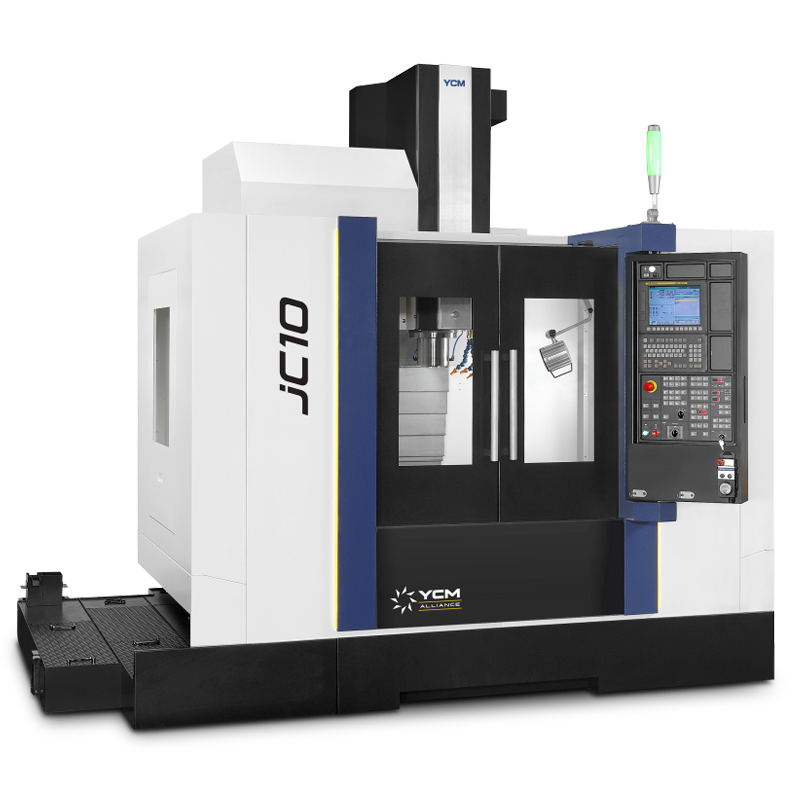

YCM ALLIANCE JC10

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
44.1” x 20.5” (1,120 x 520mm)
Travel (X, Y, Z):
40.2” x 20.5” x 21.3” (1,020 x 520 x 540mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (18.5kW) 25HP (25HP)
Tool Magazine Capacity (opt.):
24T (30/40T)
Machine Weight:
11,795 lb (5,250kg)

JC16

Written by Web Admin on . Posted in ycm alliance.

YCM ALLIANCE JC16

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
68.1” x 29.9” (1,730 x 760mm)
Travel (X, Y, Z):
64.2” x 30” x 27.6” (1,630 x 762 x 700mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (30kW) 25HP (40HP)
Tool Magazine Capacity (opt.):
24T (30/48/60T)
Machine Weight:
24,251 lb (11,000kg)

VESTA-1000

Written by Web Admin on . Posted in hwacheon.

HWACHEON VESTA-1000

VERTICAL MACHINING CENTER
Specifications
Table Working Surface:
43.31” x 19.69″ (1,100 x 500mm)
Travel (X/Y/Z):
39.37” / 21.65” / 19.69” (1,000 / 550 / 500mm)
Spindle Taper:
BT-40
Max. Spindle Speed:
10,000 rpm (12,000 rpm)
Spindle Motor:
15/11kW (20/15HP) 18/11kW (25/15HP)
Tool Magazine Capacity:
24 (30)
Machine Weight:
14,330 lb (6,500kg)
Floor Space & Height (LxWxH):
131.3″ x 86.61″ x 105.12″ (Opt.: 113.8″)

Mycenter-3020G “Sparkchanger”

Written by Web Admin on . Posted in kitamura.

Kitamura Mycenter-3020G “Sparkchanger”

VERTICAL MACHINING CENTER
Specifications
Table Size:
19.7” x 33.9” (500 x 860mm)
Travel (X, Y, Z):
30” x 20.1” x 20.1” (762 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm
Tool Storage Capacity:
30Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.4 Sec.
Rapid Feed (X, Y, Z):
1,969ipm (50m/min) X/Y x 1,417ipm (36m/min) Z
Power Requirement:
30KVA
Features
  • 180 degree 2-Station rotating pallet changer for high production requirements
  • Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways (X & Y Axes)
  • Versatile 30HP AC, 15,000rpm direct drive, dual contact spindle
  • Flexibility with the ability to add 4th/5th axis in the field
  • 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces

Mycenter-3020G

Written by Web Admin on . Posted in kitamura.

Kitamura Mycenter-3020G

VERTICAL MACHINING CENTER
Specifications
Table Size:
19.7” x 33.9” (500 x 860mm)
Travel (X, Y, Z):
30” x 20.1” x 20.1” (762 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm
Tool Storage Capacity:
30Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.4 Sec.
Rapid Feed (X, Y, Z):
1,969ipm (50m/min) X/Y x 1,417ipm (36m/min) Z
Power Requirement:
30KVA
Features
  • Enhanced control capability with Kitamura’s feature packed Arumatik-Mi control
  • Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways (X & Y Axes)
  • Versatile 30HP AC, 15,000rpm direct drive, dual contact spindle
  • Plumbed and ready for coolant thru the spindle – can be added in field
  • 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces
  • Flexibility with the ability to add 4th/5th axis in the field

Mycenter-4XV

Written by Web Admin on . Posted in kitamura.

Kitamura Mycenter-4XV

VERTICAL MACHINING CENTER
Specifications
Table Size:
19.7” x 44.1” (500 x 1,120mm)
Travel (X, Y, Z):
40.2” x 20.1” x 20.1” (1,020 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
50~15,000rpm, Built-in
Tool Storage Capacity:
40 Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z):
2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement:
30KVA
Features
  • Class Leading 40-Tool standard ATC
  • Large work envelope within a uniquely compact design
  • Thermally stable, Heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
  • High Speed Processing Kitamura Arumatik-Mi Pro controller offers up to 16x faster processing speeds!

Mycenter-3XV

Written by Web Admin on . Posted in kitamura.

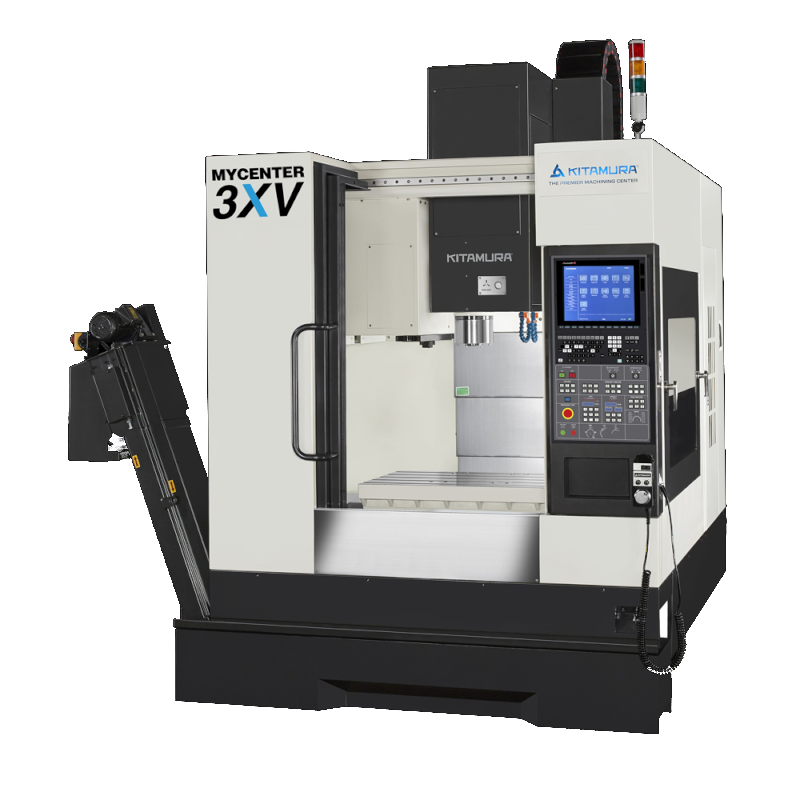

Kitamura Mycenter-3XV

VERTICAL MACHINING CENTER
Specifications
Table Size:
19.7” x 33.9” (500 x 860mm)
Travel (X, Y, Z):
29.9” x 20.1” x 20.1” (760 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
50~15,000rpm, Built-in
Tool Storage Capacity:
30 Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z):
2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement:
25KVA
Features
  • Ideal for machining small to medium sized work pieces
  • Large work envelope within a uniquely compact design
  • Thermally stable, heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
  • Standard 30 tool high speed ATC
  • High Speed Processing Kitamura Mi-Pro CNC controller offers up to 16x faster processing speeds!

Mycenter-2XV “Sparkchanger”

Written by Web Admin on . Posted in kitamura.

Kitamura Mycenter-2XV “Sparkchanger”

VERTICAL MACHINING CENTER
Specifications
Table Size:
15.7” x 22.0” (400 x 560mm)
Travel (X, Y, Z):
23.6” x 20.1” x 20.1” (1,020 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
50~15,000rpm, Built-in
Tool Storage Capacity:
40 Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z):
2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement:
30KVA
Features
  • Ideal for machining small to medium sized work pieces
  • Standard 2-station, factory installed 180 degree rotating APC.  Uniquely compact design.
  • Thermally stable, heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
  • Standard 40-Tool ATC
  • High speed processing Kitamura Arumatik-Mi Pro controller offers up to 16x faster processing speeds!
