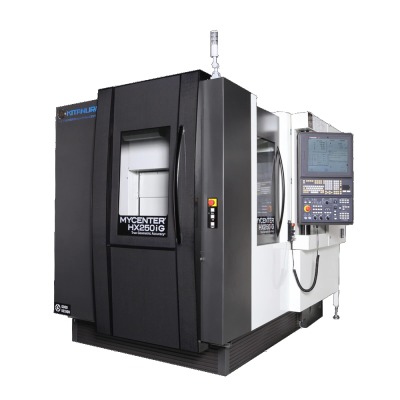

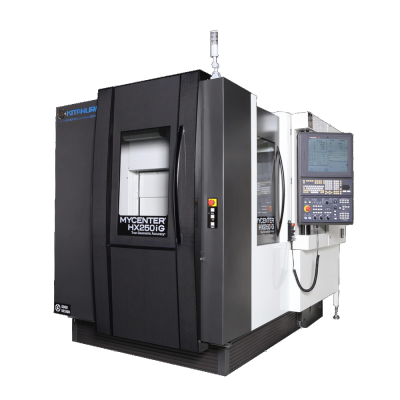

Kitamura HX250iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
10” x 10” (254 x 254mm)
Travel (X, Y, Z):
12” x 12” x 13” (305 x 305 x 330mm)
Spindle Taper:
NST No. 30
Spindle Speed:
150~15,000rpm **30,000 Option
Tool Storage Capacity:
40 Pcs.- Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C):
1.2 Sec. /2.8 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
108,000deg./min. (300rpm)
Power Requirement:
30KVA
Features
  • Drastically reduces set-up times for small, detailed, highly accurate complex parts
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Ultra high speed rapid feed rates of 2,362ipm
  • 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
  • Powerful 15,000rpm, dual contact spindle – Optional 30,000rpm HSK-E40 spindle Available
  • Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field

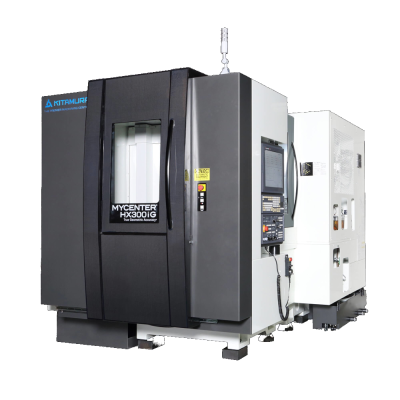

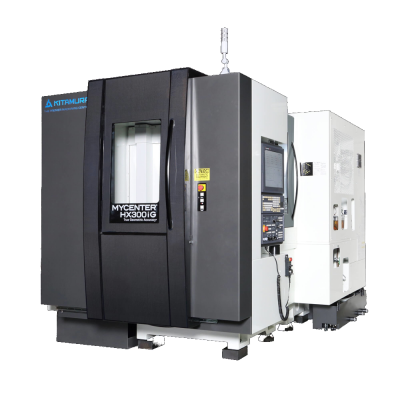

Kitamura HX300iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
12” x 12” (305 x 305mm)
Travel (X, Y, Z):
18.1” x 20.1” x 22.0” (460 x 510 x 560mm)
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm **20,000 Option
Tool Storage Capacity:
50 Pcs.- (100, 150, 200 Opt.)
Tool Change Time (T-T/C-C):
1.3 Sec. /2.5 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
54,000deg./min. (150rpm)
Power Requirement:
45KVA
Features
  • Drastically reduces set-up times for highly complex parts requiring multiple operations
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
  • Ultra high speed rapid feed rates of 2,362ipm
  • High Speed 4th axis rotary table, Integral Motor Driven 54,000deg/min (150rpm) rapids
  • 2-Station APC is automation ready and field expandable up to 8 pallets for unmanned operation potential
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse encoder technology
  • Powerful 15,000rpm, 30HP, dual contact spindle – Optional 20,000rpm spindle speed Available
  • Ballscrew Cooling and Linear Scale Feedback in all axes
  • The ability to add 400mm tables in the field as an option

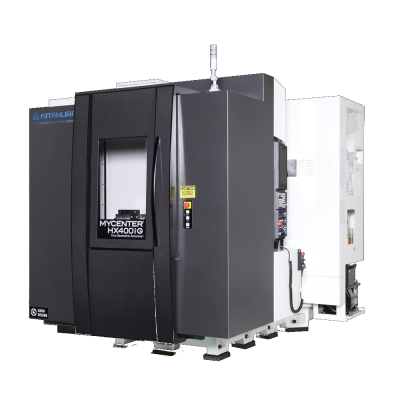

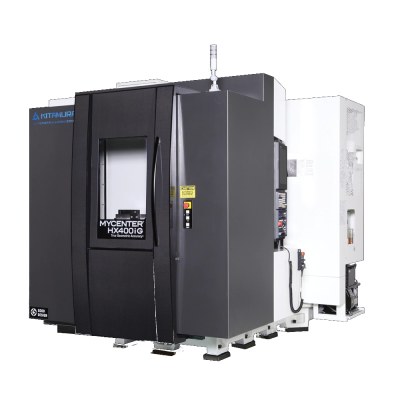

Kitamura HX400iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
15.75” x 15.75” (400 x 400mm)
Travel (X, Y, Z):
24” x 24” x 24” (610 x 610 x 610mm)
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm (20,000rpm Opt.)
Tool Storage Capacity:
50 Pcs. (100,150,200,300 Opt.)
Tool Change Time (T-T/C-C):
1.3 sec. /2.5 sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
45,000deg./min. (125rpm)
Power Requirement:
50KVA
Features
  • Linear scale feedback system – fine pitch, high resolution ballscrews
  • Positioning Accuracy:±0.000078”/full stroke, Repeatability: ±0.000039”
  • Expandable, 2-station rotating pallet system
  • Full 4th axis rotary table with Integral motor and high-speed 125rpm (45,000deg/min) rapid feed rate
  • Highest grade Meehanite cast iron construction with world’s fastest rapid feed rates of 2,362ipm with solid box ways
  • High-speed, 15,000 direct driven, dual contact spindle. Optional 20,000rpm now available!
  • SSS (Super Smooth Surface) control for complex contouring & mold applications
  • The ability to add 500mm tables in the field as an option

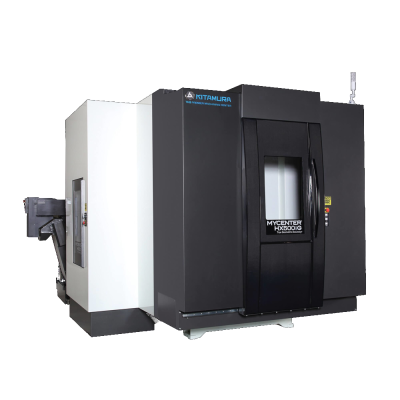

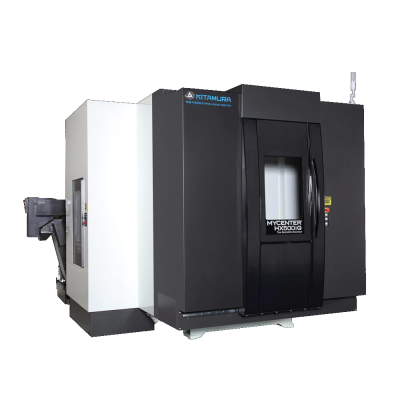

Kitamura HX500iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
19.7” x 19.7” (500 x 500mm)
Travel (X, Y, Z):
34.3” x 31.5” x 36.6” (870 x 800 x 930mm)
Spindle Taper:
NST No. 40
Spindle Speed:
20~20,000rpm – Gear Drive, 4-Step
Tool Storage Capacity:
50 Pcs. (100,150,200 Opt.)
Tool Change Time (T-T/C-C):
1.3 sec. /3.8 sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
43,200deg./min. (120rpm)
Power Requirement:
55KVA
Features
  • #40 Taper, 20,000rpm and #50 Taper, 12,000rpm geared spindle configurations. HSK-A63 spindle available as an option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids
  • World’s fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!
  • The ability to add 630mm tables in the field as an option

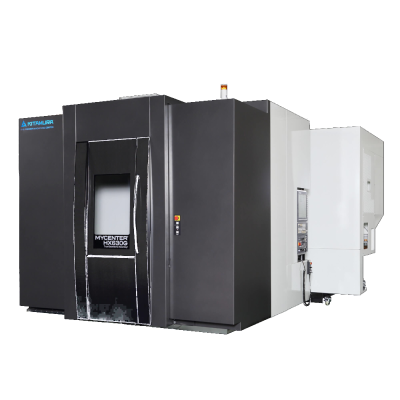

Kitamura HX630G

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
19.7” x 19.7” (500 x 500mm)
Travel (X, Y, Z):
34.3” x 31.5” x 36.6” (870 x 800 x 930mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity:
62 Pcs. (122,162,212 Opt.)
Tool Change Time (T-T/C-C):
2.1 sec. /4.8 sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
43,200deg./min. (120rpm)
Power Requirement:
55KVA
Features
  • 12,000rpm (opt. 8,000rpm) 4-step geared spindle configurations. High speed, high torque. HSK-A100 is an available option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids
  • World’s fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!
  • The ability to add 630mm tables in the field as an option

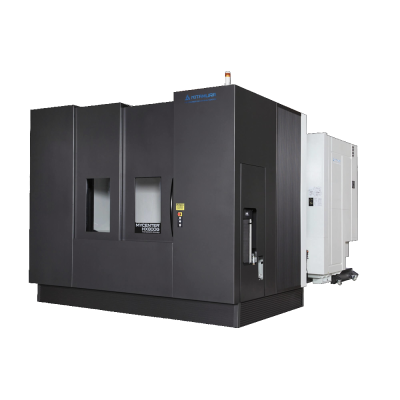

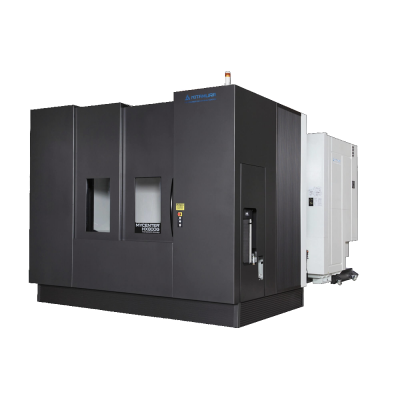

Kitamura HX800G

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
31.5” x 31.5” (800 x 800mm)
Travel (X, Y, Z):
61.0” x 51.2” x 55.1” (1,550 x 1,300 x 1,400mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity:
62 Pcs. (122, 162,212 Opt.)
Tool Change Time (T-T/C-C):
2.1 sec. / 5.9 sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
9,000deg./min. (25rpm)
Power Requirement:
70KVA
Features
  • 12,000rpm and optional 8,000rpm geared spindle configurations. High speed, high torque. HSK-A100 spindle available as an option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X, Y and Z axes
  • Full 4th axis rotary table for 360ᴼ cutting capability
  • World’s fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!

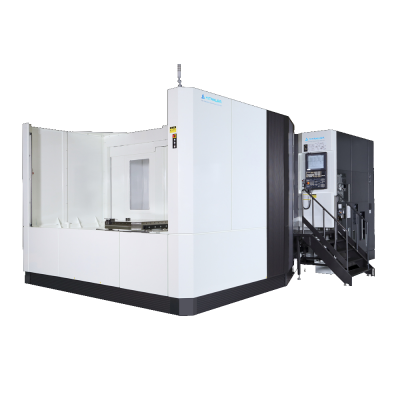

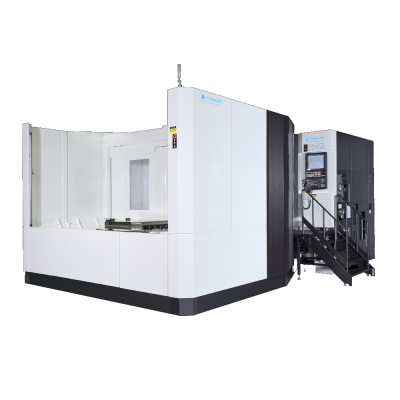

Kitamura HX1000G

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
39.37” x 39.37” (1,000 x 1,000mm)
Travel (X, Y, Z):
80.31” x 51.97” x 53.94” (2,040 x 1,320 x 1,370mm)
Spindle Taper:
NST No. 50
Spindle Speed:
20~8,000rpm

(35~12,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity:
150 Pcs. (200 Opt.)
Tool Change Time (T-T/C-C):
3.0 sec. /7.0 sec.
Rapid Feed (X,Y,Z)
1417ipm (36m/min)
Power Requirement:
80KVA
Features
  • Solid box way design combined with the rigidity of high grade meehanite casting
  • Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Linear scale feedback on X, Y, Z axes
  • Full 4th axis rotary table with high resolution scale
  • Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
  • Patented twin ballscrew/twin servo motor driven axis drive system
  • Flexibility with the ability to add a 5th axis in the field
