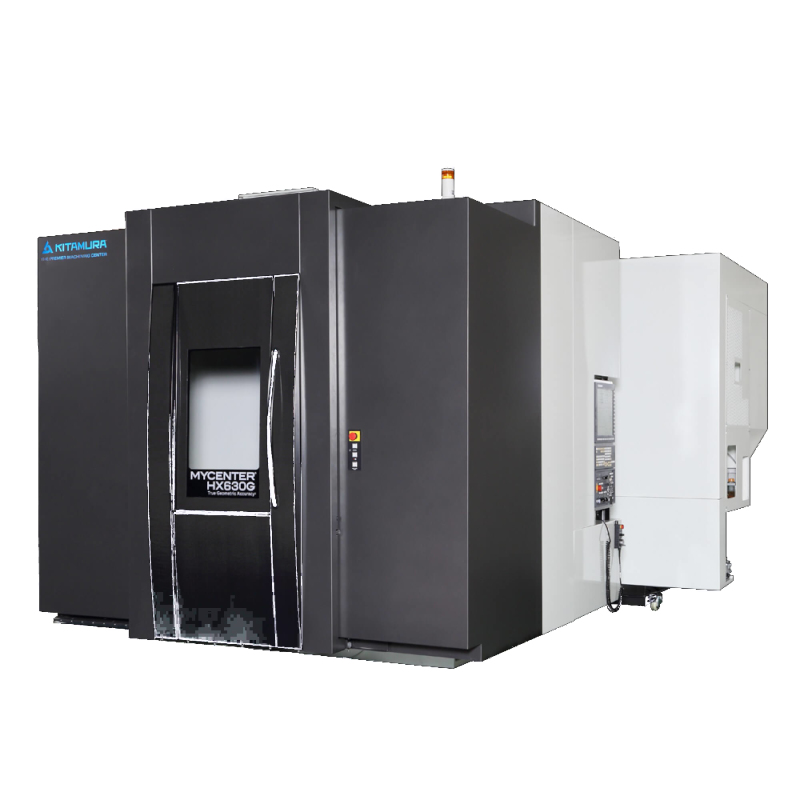

Kitamura Mycenter-HX630G

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
19.7” x 19.7” (500 x 500mm)
Travel (X, Y, Z):
34.3” x 31.5” x 36.6” (870 x 800 x 930mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity:
62 Pcs. (122,162,212 Opt.)
Tool Change Time (T-T/C-C):
2.1 sec. /4.8 sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
43,200deg./min. (120rpm)
Power Requirement:
55KVA
Features
  • 12,000rpm (opt. 8,000rpm) 4-step geared spindle configurations. High speed, high torque. HSK-A100 is an available option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids
  • World’s fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!
  • The ability to add 630mm tables in the field as an option
